Product & After-Sales
Services
Taner provides proprietary technologies and products, together with after-sales support throughout the equipment lifecycle.
OUR SOLUTIONS FOCUS ON
Driving Mill Performance Through
Practical Engineering
Through our engineering capabilities and technologies, we develop equipment and integrated solutions to support palm oil mill performance and operations.
Product and After Sales Services

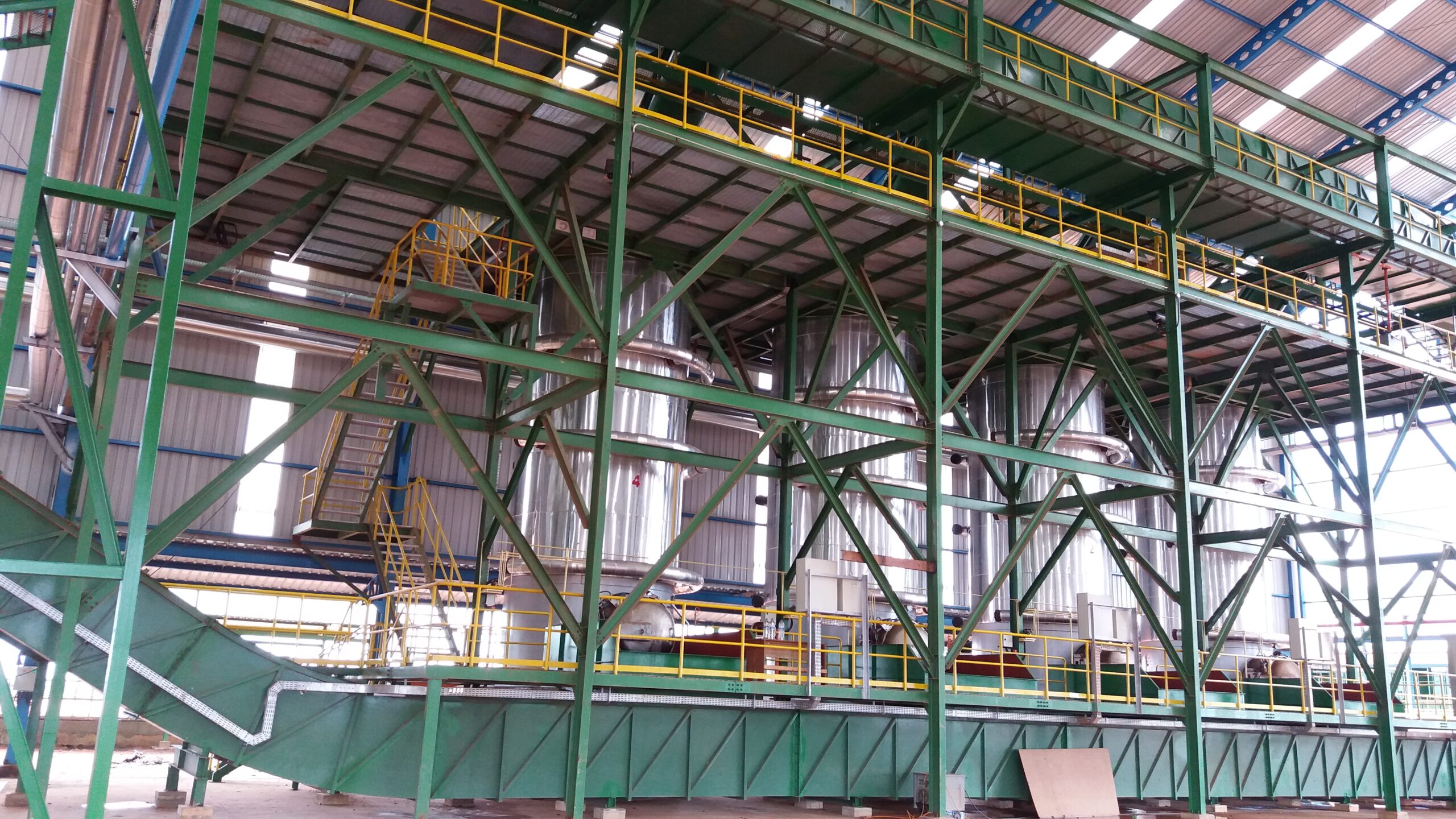

Patented Vertical Sterilizer System
Taner Vertical Sterilizer (VS) System is a worldwide proven technology.
Taner VS is leading mill modernization using lean resources in energy and space, with minimal manpower from loading ramp to VS station, up to before threshers.
Taner VS goes further than meeting sterilization objectives and delivering mill throughput needs. Our solution-fit proposal often leads to Value Engineering that benefits customers in multiple ways.
Reducing Operating Costs
Lean resource requirements help improve overall operating efficiency.
Enhancing Safety
A simplified system designed to support safer mill operations.
Enabling Steam Optimization
Improved steam utilization throughout the sterilization process.
Improving Front-End Efficiency
Better process flow from loading through the mill's front-end system.
Applications
Built for Different Mill Requirements
With scraper bar conveyor handling and a small footprint, Taner VS can fit into different layouts with minimal requirements for space, steam and manpower.
- New palm oil mill
- Existing mill for capacity increase
- Retrofitting works — convert conventional cages system to VS system
Key Features
Designed Around Performance
- Enhanced Safety Features
- Regulated discharge speed of Sterilized Fruit Bunches (SFB) from VS
- Big in Capacity
- Strong After-Sales Support
Product and After Sales Services

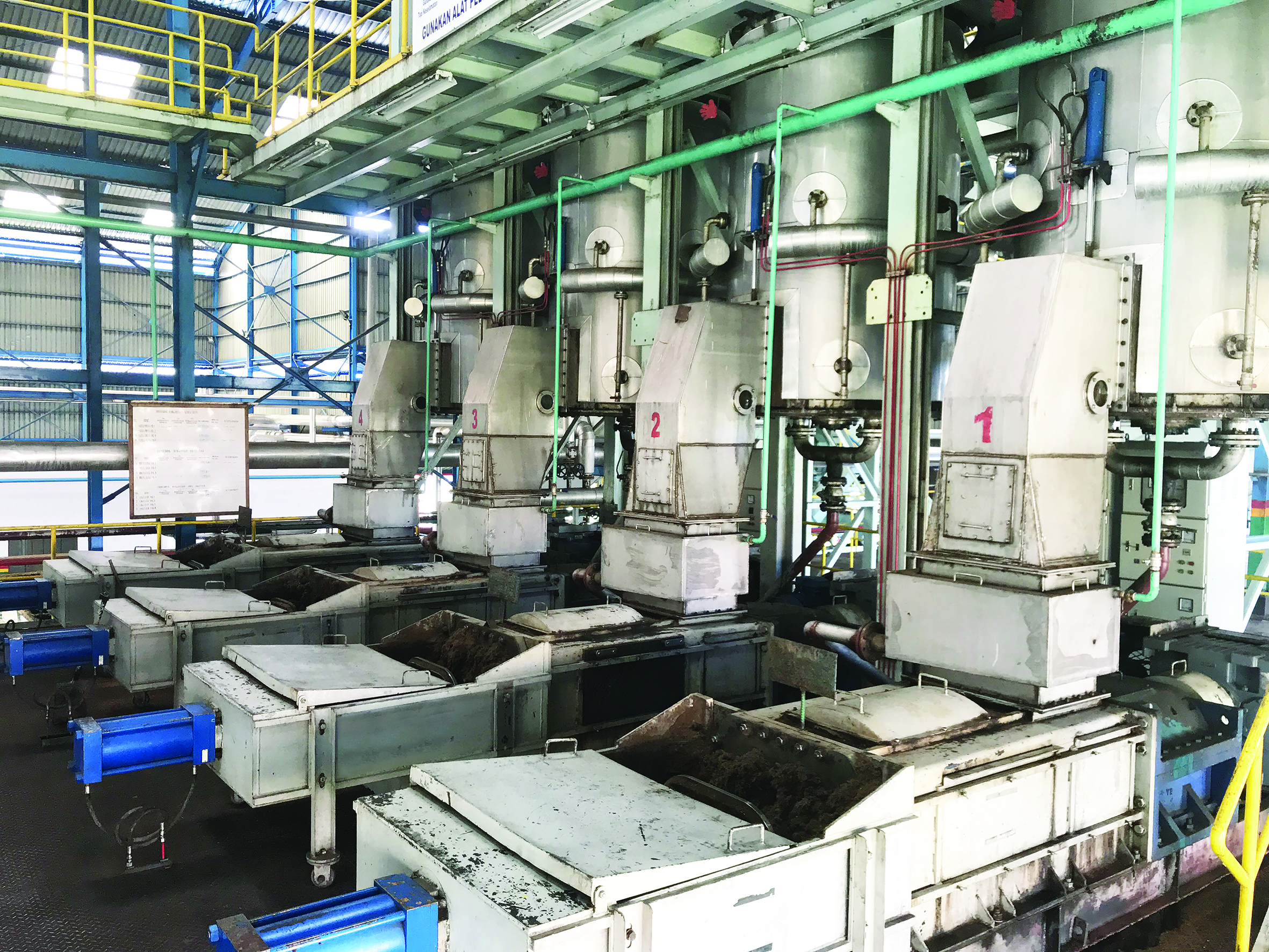

Double Screw Press & Matching Digester
Getting the best of the trio.
Taner Screw Press & Digester are designed to meet the characteristics and needs of new FFB clones where higher fibre-to-nut ratio meets thinner shell. Our press and digester perform with good oil loss and broken nut control while providing high pressing capacity of up to 30 TPH to help keep pressing cost low.
01
Low Operating Cost
Designed to achieve efficient pressing performance while keeping operating requirements under control.
02
Big in Capacity
Pressing capacity is available up to 30 TPH FFB for higher throughput requirements.
03
Low Oil Loss & Broken Nut Control
Engineered to balance pressing capacity with oil recovery and controlled nut breakage.
Technical Data
Screw Press Specifications
Compare the P20 and P25 configurations and matching digester requirements.
| Screw Press | Taner P20 | Taner P25 |
|---|---|---|
| Matching Digester | 4500 L | 6000 L |
| Capacity | 20 TPH FFB | 25 TPH FFB |
| Screw Press & Digester matching transmission power |
SP: 45 kW Digester: 45 kW |
SP: 45 kW Digester: 45 kW |
| Operating Ampere at Press | 45–65 Amp | 45–65 Amp |
| Oil loss, OLDB % | ≤ 7.8% | ≤ 7.8% |
| Nut breakage, BN/TN % | ≤ 12% | ≤ 12% |
Swipe or scroll sideways to view all models.
Product and After Sales Services
Accelerated Continuous Clarification System (ACCS)
Faster is Better...
ACCS improves the efficiency and effectiveness of oil separation and helps to enhance solid settlement rate in oil room functions.
Taner ACCS applies the science of lamella clarifier into palm oil mill oil-room applications.
ACCS DCO
Diluted Crude Oil
- Oil separation happens within 2 hours
- Total oil skimming can be completed by end of shift
- Start-up heating is as fast as 30 minutes to achieve 95°C
- System cleaning can be accomplished within 4 hours using only a handheld water jet
ACCS Condensate
Cleaner Condensate Handling
- Eliminate the need for a large condensate pit
- Better solid removal efficiency
- Effective Water / NOS separation
- Hygienic operation
Key Features
Built for Faster Separation
- Reduce time to oil separation by up to 70%
- Efficient NOS removal
- Improved safety at work
- Small footprint
MANUFACTURING FACILITY
Built for Quality.
Driven by Capability.

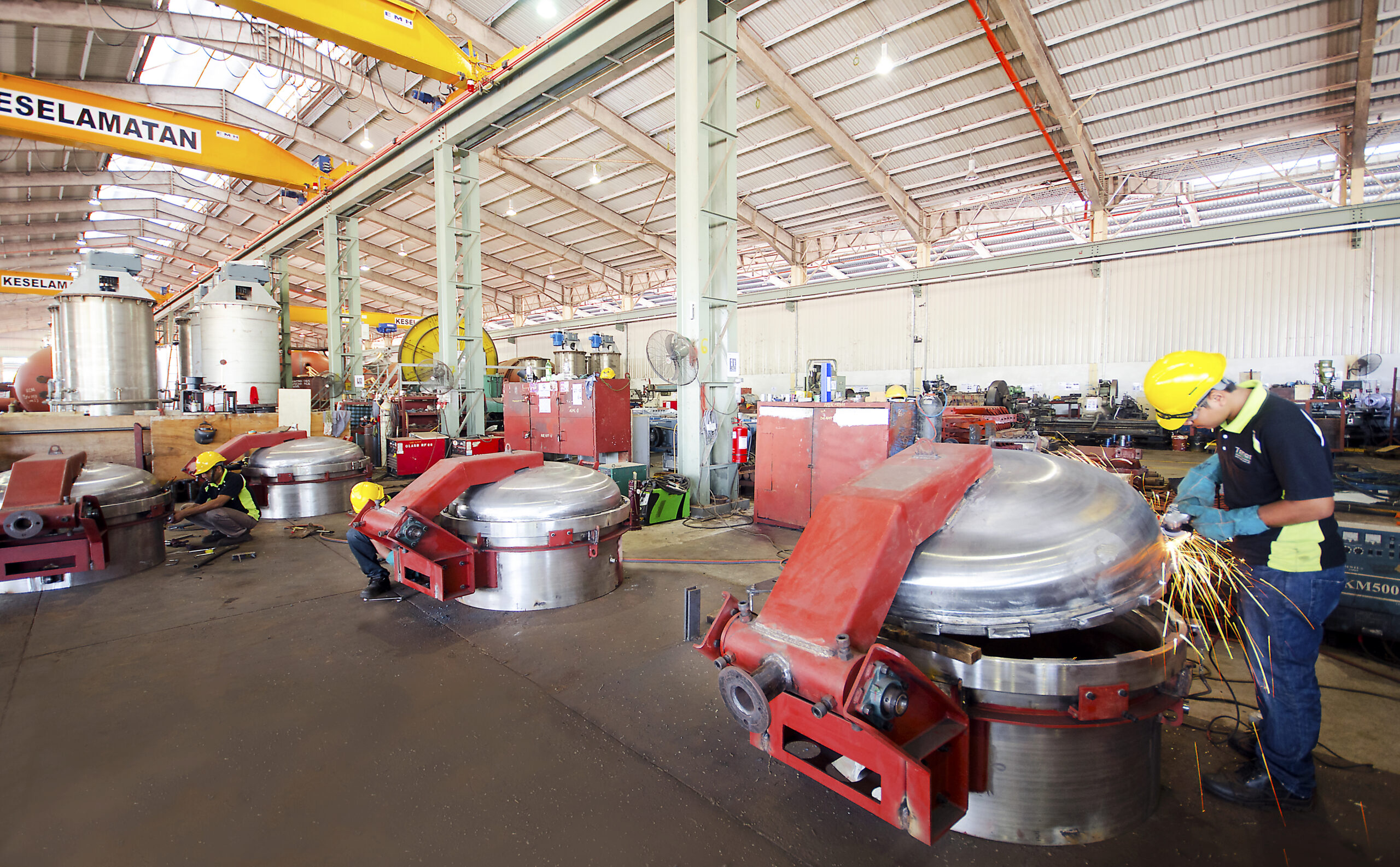

Taner operates a manufacturing facility in Sepang, Malaysia, supporting the design and fabrication of process equipment for the palm oil and industrial sectors.
With in-house fabiraction and quality assurance capabilities, the facility supports the manufacturing of equipment for process industry requirements.
AFTER-SALES & CUSTOMER SUPPORT
Your Operations, Our Ongoing Support
PT Citra Harapan Dinamika (CHD) was established in Jakarta, Indonesia, in 2014 as Taner Group's dedicated after-sales and customer support hub in Indonesia.
CHD provides:
- Critical spare parts inventory
- Replacement components
- Installation works
- Service and maintenance solutions
MANUFACTURING LICENSES
These licences support our manufacturing requirements
for quality, safety and regulatory compliance.
Pressure Vessel Manufacturing License
Certified to manufacture pressure vessels in accordance with applicable regulations.
Quick-Actuating Door Manufacturing License
Certified to manufacture quick-actuating doors in accordance with applicable regulations.
